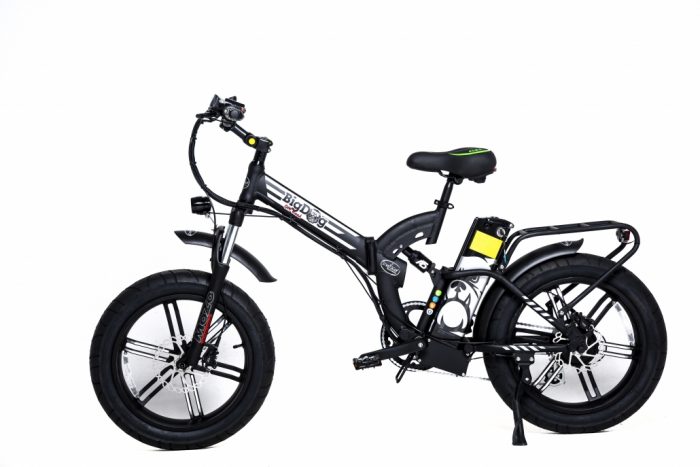

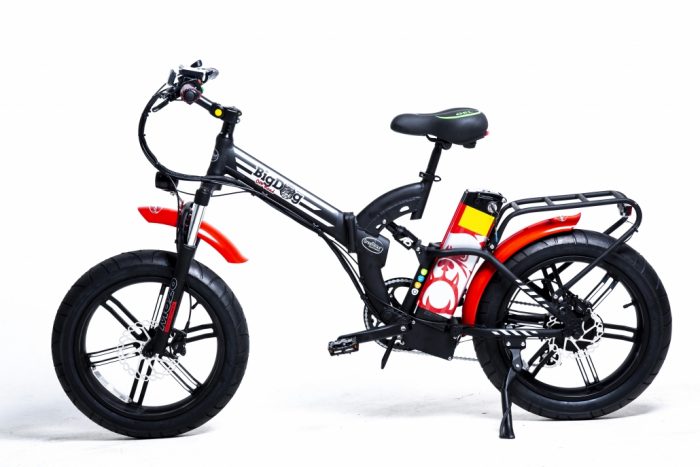

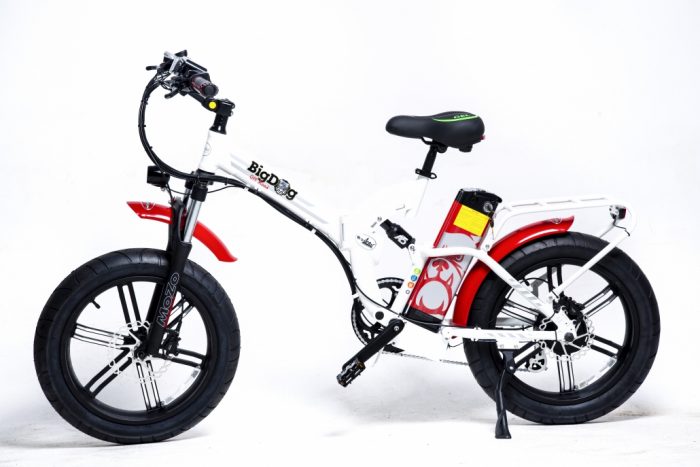

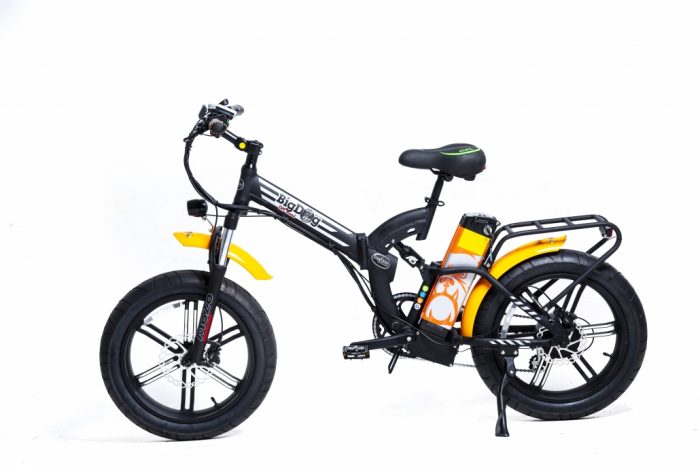

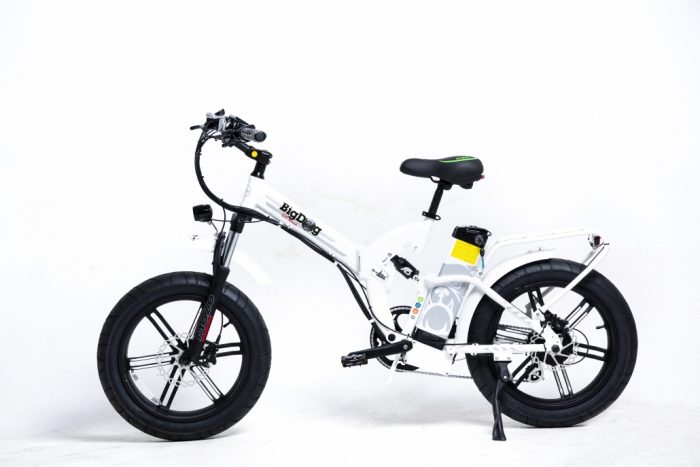

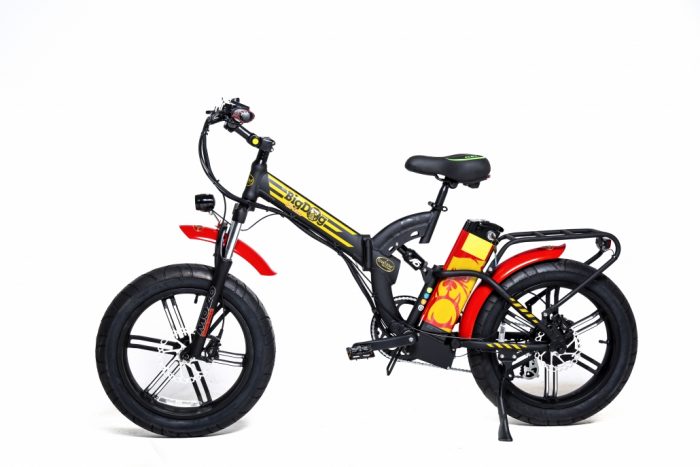

Big Dog Off Road
2021 Upgrades:
- Self balance lithium ion battery
- New Israeli technology and upgraded controller
- New fat tires flat-resistant technology
Suggested Use: Urban, Trail, Beach.
Warranty: 1 Year
Model Year: 2021
Speed & Torque: 28mph & 80 NM
Electronic Details:
Motor: 8Fun Rear-Mounted Geared Hub 750 Watt Nominal- 1200 Watt peak
Battery: Cells made by BOSTON POWER USA – 48 volts 15 Ah (736 Wh) – (Li-ion)
Estimated Charge Time / Estimated Range: 5-6 hours / 25 to 50 miles
Display Type: LCD-S900 E-bike Intelligent Display
Readouts: Battery Level, Speed, Assist Level, Odometer, Trip Distance.
Drive Modes: Speed Sensor Pedal Assist, Thumb Throttle.
Bicycle Details
Total Weight/ Battery Weight: 61 lbs. / 9 lbs.
Frame: High Step, Folding
Frame Material: 6061 Aluminum Alloy
Frame Fork: Mozo USA Suspension with 140 mm Travel.
Gearing Details: 7 speed made by Shimano
Cranks: 170 mm Length, 28-33-42T
Stem: Adjustable Height
Brakes: Green Bike Electric Motion Hydraulic disc brakes with 160 mm rotors
Grips / Saddle: Wide saddle with back light
Seat post Diameter: 27.2 mm
Tires: Innova, 20″ x 4.0″
Suspension: Dual suspension, front 140 mm travel Mozo USA and rear Taiwan kindshock A5 RE
